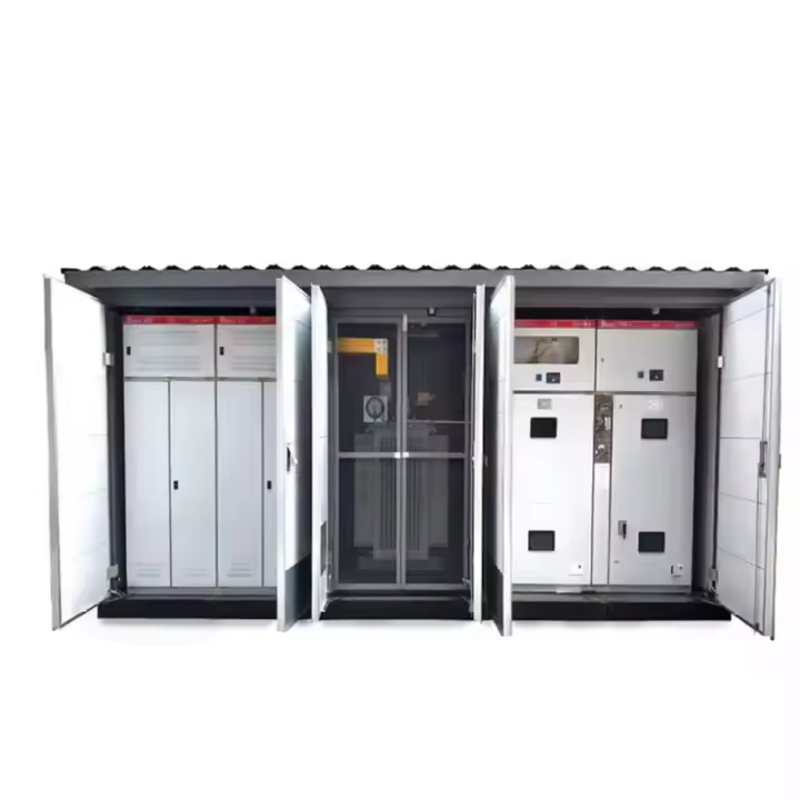

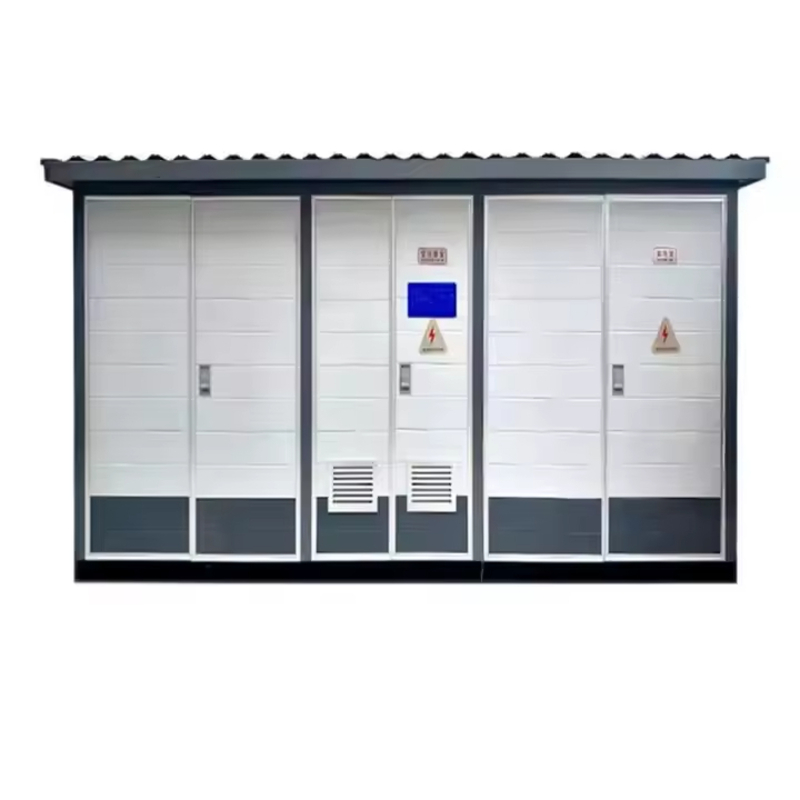

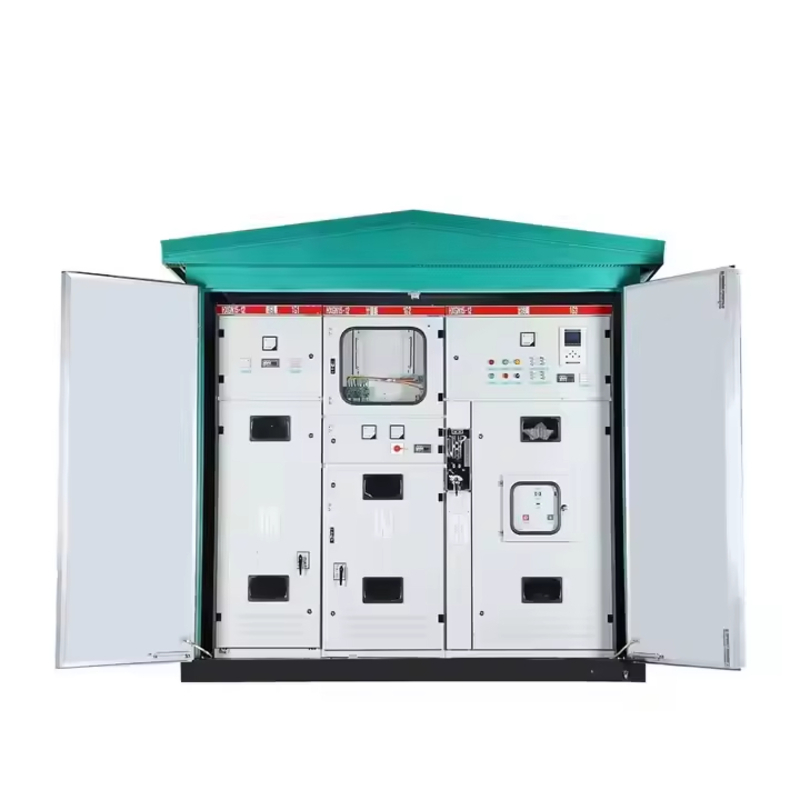

The Compact Substation, also known as a prefabricated substation or package substation, is a fully enclosed power distribution solution that integrates high-voltage switchgear, distribution transformers, and low-voltage switchgear into a compact and modular unit. Designed for urban power networks, industrial parks, commercial complexes, and renewable energy systems, it ensures safe, efficient, and space-saving power distribution.
Marca :
GE or CustomizedOEM/ODM :
AcceptKey Features
✅ All-in-One Design: Combines HV, transformer, and LV sections in a weatherproof, tamper-proof enclosure.
✅ Space-Saving: Up to 50% smaller footprint than traditional substations.
✅ Plug-and-Play: Factory-assembled and tested, ensuring fast on-site installation.
✅ Flexible Configuration: Compatible with ring main units (RMUs), air- or oil-filled transformers, and various LV panels.
✅ Safety & Protection: Equipped with interlocks, grounding, and protection relays.
✅ Smart Monitoring (Optional): SCADA/IoT-ready for real-time remote diagnostics.
---
Technical Specifications
Parameter Value
Rated Voltage (HV) 11kV / 22kV / 33kV
Rated Voltage (LV) 400V / 690V
Transformer Capacity 100kVA to 2500kVA
Frequency 50Hz / 60Hz
Cooling Type Oil-immersed / Dry-type
Protection Grade IP43 to IP55 (customizable)
Ambient Temperature -25°C to +45°C
Enclosure Material Galvanized steel / Aluminum alloy
Standards Compliance IEC 62271-202, IEC 60076, ISO 9001
---
Applications
📌 Urban Residential Areas
📌 Commercial Buildings & Malls
📌 Industrial Zones
📌 Construction Sites
📌 Renewable Energy Projects (e.g., solar/wind farms)
---
Why Choose Our Compact Substation?
🔧 High Reliability: Manufactured under strict quality control with certified components.
🌍 Environmental Adaptability: Corrosion-resistant, heatproof design for harsh conditions.
⏱ Reduced Installation Time: Minimal civil work required, operational within days.
💰 Cost-Efficient: Low operation & maintenance costs, long service life.
---
Customization Options
We offer flexible customization to meet your project needs:
HV configuration: Loop or radial
Transformer type: Oil or dry
SCADA integration
Smart metering
Remote monitoring
---
Certifications
✅ ISO 9001
✅ CE Certified
✅IEC60076
✅ Type-tested at accredited labs
---
Contact Us
Ready to power your next project with our compact substation solutions?
📩 Email: wong@anhuigreenenergy.com
📞 Phone: +86 0551-65879669
🌐 Website: https://www.ge-ele.com
---
!!!Note: Product specifications and configurations can be customized according to project requirements.
The Compact Substation, also known as a prefabricated substation or package substation, is a fully enclosed power distribution solution that integrates high-voltage switchgear, distribution transformers, and low-voltage switchgear into a compact and modular unit. Designed for urban power networks, industrial parks, commercial complexes, and renewable energy systems, it ensures safe, efficient, and space-saving power distribution. Rated Voltage 6kv 10kv 15kv 20kv Rated Current 630/1000/1250/1600/2000/2500/3150A Model Number YB-PRE Certification ISO CE Standard IEC60076 Warranty 2 Years Application Industrial Rated Voltage 6kv 10kv 15kv 20kv Rated current 630/1000/1250/1600/2000/2500/3150A Protection Level IP30/IP32/IP40/IP65/IP66 Appearance Treatment Powder Coated Painting Feature Easy installation OEM Accept
